J61/41 H/Y锻钢截止阀
设计与制造标准：
●设计与制造：BS1873 BS5160
●法兰尺寸：ANSIB16.5
●压力温度：ANSIB16.34
●结构长度：ANSIB16.10 BS1873
●对焊连接尺寸：ANSIB16.25
●检验与实验：BS6755

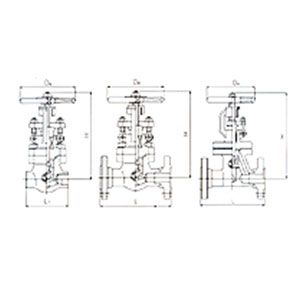

安装尺寸及重量：
| ANSI 150Lb | ||||||||||
| NPS | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | ||||
| L | 108 | 117 | 127 | 140 | 165 | 203 | ||||
| H | 165 | 195 | 250 | 250 | 290 | 310 | ||||
| D0 | 100 | 125 | 160 | 160 | 180 | 200 | ||||
| Wt | 6.9 | 9.8 | 13.5 | 19.5 | 28.5 | 30.3 | ||||
| ANSI 300Lb | ||||||||||
| NPS | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | ||||
| L | 152 | 178 | 203 | 216 | 229 | 267 | ||||
| H | 165 | 195 | 250 | 250 | 290 | 310 | ||||
| D0 | 100 | 125 | 160 | 160 | 180 | 200 | ||||
| Wt | 7.7 | 11.3 | 16.8 | 21.2 | 32.6 | 35 | ||||
| ANSI 600Lb | ||||||||||
| NPS | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | ||||
| L | 165 | 190 | 216 | 229 | 241 | 292 | ||||
| H | 165 | 195 | 250 | 250 | 290 | 310 | ||||
| D0 | 100 | 125 | 160 | 160 | 180 | 200 | ||||
| Wt | 7.8 | 12.5 | 17.5 | 23.5 | 38.5 | 42.2 | ||||
| ANSI 150Lb-800Lb | ||||||||||
| NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | ||
| L | 79 | 79 | 79 | 92 | 111 | 120 | 152 | 172 | ||
| H | 155 | 155 | 155 | 160 | 195 | 165 | 265 | 300 | ||
| D0 | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | ||
| Wt | 2.2 | 2.2 | 2.0 | 1.9 | 2.4 | 3.5 | 8.0 | 8.6 | ||
